  • PLF2000系列

PLF2000系列

库存状况:现货


配送方式:快递或物流


型号:


下载地址:点击下载




立即咨询
联系热线 18562565915

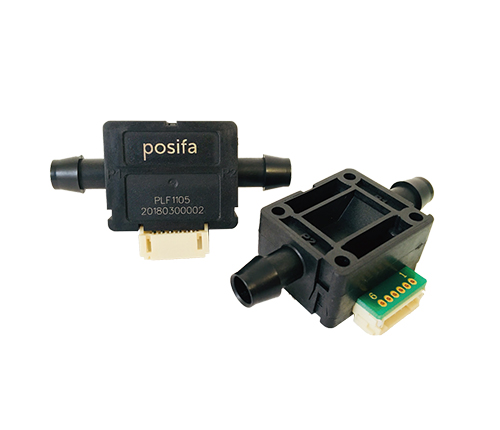

Posifa designed the PLF2000 series of liquid flow sensors to replace mechanical turbine flow sensors. With a MEMS thermal flow die at its core, PLF2000 is far more accurate and repeatable, even when flow is pulsatile and provides a linear digital output. Because it has no moving parts, PLF2000 does not get stuck nor suffer mechanical breakdown. Cleaning does not require disassembly. Also, because it does not introduce an obstruction (i.e. turbine) in the flow path, it presents minimal flow resistance, making it possible to circulate liquid via gravity, a boiler, or a low-power pump.
PLF2000 features Posifa’s third-generation thermal flow die, benefiting from the latest innovations in microfabrication. The sensor die uses a pair of thermopiles to detect changes in temperature gradient caused by mass flow, delivering excellent signal-to-noise, and repeatability. The “solid state” thermal isolation structure eliminates the need for surface cavity or fragile membrane used in competing technologies. The sensor die, with its silicon carbide protective film, is capable of direct contact with liquid, allowing the highest level of sensitivity and minimizing the cost of packaging.

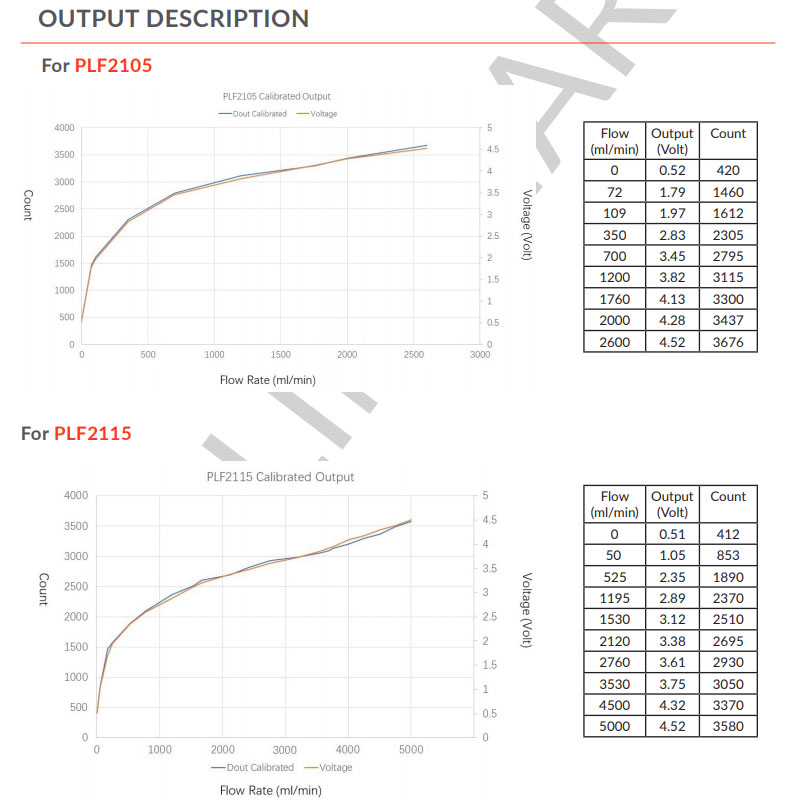

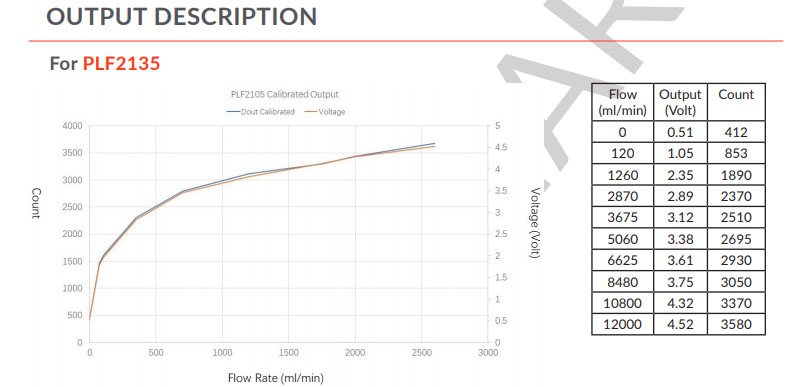

PLF2000 complies with NSF/ANSI 61: Drinking Water System Components – Health Effects and can be used safely in water and beverage appliaces.PLF2000 provides both analog (voltage) and digital I2C output.
应用:咖啡机和速递机
饮水机净水器和过滤系统
饮料自动售货机
洗涤剂自动售货机
清洁化学品混合系统
液体冷却系统功能:
无移动部件
响应时间极快(<5 ms)
可与脉动流系统一起使用
不会阻塞流量(低压降)
维护不需要拆卸

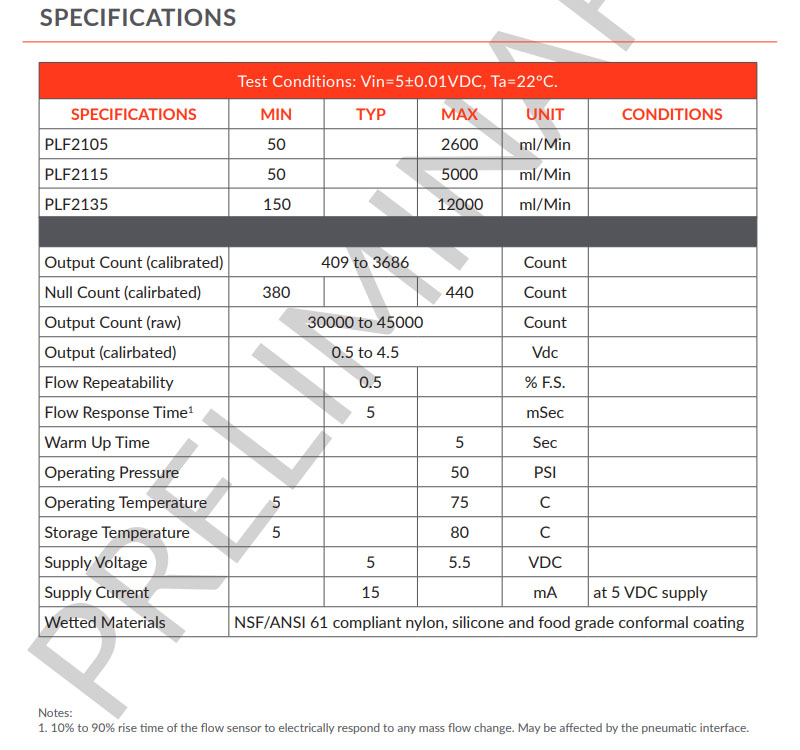

最大额定值:
工作温度:5到75°C
储存温度:5至80°C•工作压力:50 psi
